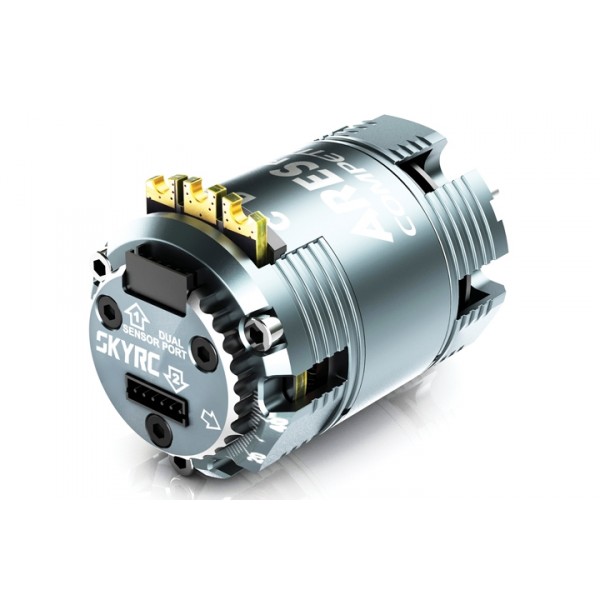

SkyRC Ares Pro 10.5T Brushless Motor

SkyRC Ares Pro 10.5T Brushless Motor | 1/10th Motors

SkyRC Ares Pro 10.5T Brushless Motor


$90.00 (inc GST)

sk-400003-28

Availability: AVAILABLE ON BACKORDER

Details

  • Model: SK-400003-33
  • Manufactured by: SkyRC

Description

•CNC Machined Billet T6 Aluminium Heatsink Can

  •High Purity Copper Windings Maximizes Conductivity

  •High Power Solder Tabs

  •Removable/Replaceable Rotor

  •Powerful Sintered Neodymium Magnet

  •Precision Engineered for Maximum Energy Conversion

  •Dual Sensor Port

  •Incorporate Radial Fan in Front End Bell

  •Adjustable Timing

  •Compatible with any Sensored/ Sensorless ESC

  •IFMAR, ROAR Compliance



Specification:

Turns: 10.5T

KV (RPM/VOLT):3600KV

Watts: 250

Rotor: 2Poles

LiPo: 1-2S

Max Current: 63A

Unload Current: 1.6A

Internal Resistance: 0.0208

Shaft Diameter: 3.175mm

Net Weight: 178g

Cooling Fan Inside: No

Sintered Rotor Magnet: Yes

Stepless Timing Adjustment: Yes

Thermal Protection: Yes

Hand Wound: Yes

Racing Type: SPEC
