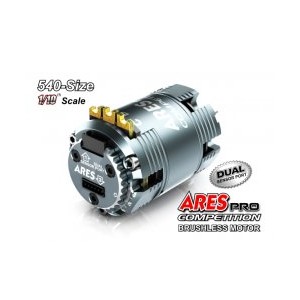

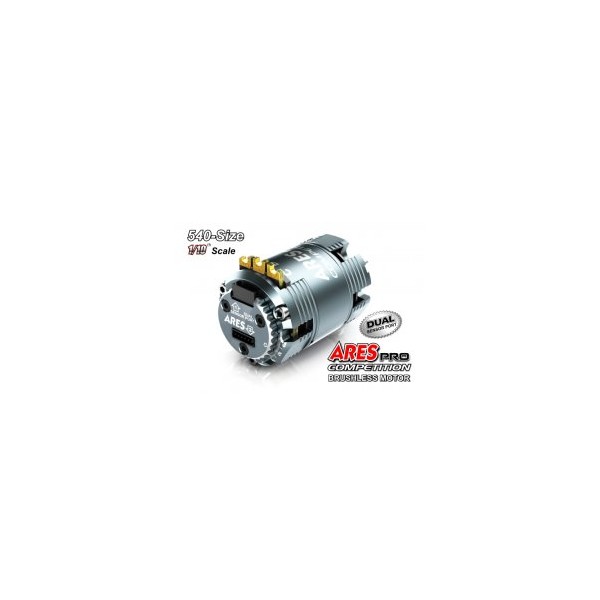

SkyRC Ares Pro 17.5T Brushless Motor

SkyRC Ares Pro 17.5T Brushless Motor | 1/10th Motors

SkyRC Ares Pro 17.5T Brushless Motor


$90.00 (inc GST)

400003-31

Availability: Available on backorder

•CNC Machined Billet T6 Aluminum Heatsink Can
 •High Purity Copper Windings Maximizes Conductivity
 •High Power Solder Tabs
 •Removable/Replaceable Rotor
 •Powerful Sintered Neodymium Magnet
 •Precision Engineered for Maximum Energy Conversion
 •Dual Sensor Port
 •Incorporate Radial Fan in Front End Bell
 •Adjustable Timing
 •Compatible with any Sensored/ Sensorless ESC
 •IFMAR, ROAR Compliance






  540-Size High-Torque Sintered Neo Tuning Rotor   540-Size High-Speed Sintered Neo Tuning Rotor



Specification:

Turns:17.5T
KV (RPM/VOLT):2200KV
Watts: 130
Rotor: 2Poles
LiPo: 1-2S
Max Current: 34A
Unload Current: 1.0A
Internal Resistance: 0.0517
Shaft Diameter: 3.175mm
Net Weight: 178g
Cooling Fan Inside: No
Sintered Rotor Magnet: Yes
Stepless Timing Adjustment: Yes
Thermal Protection: Yes
Hand Wound: Yes
Racing Type: SPEC
