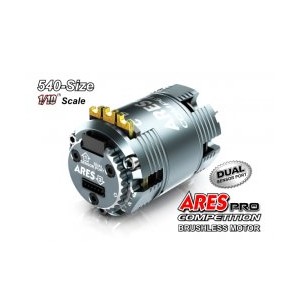

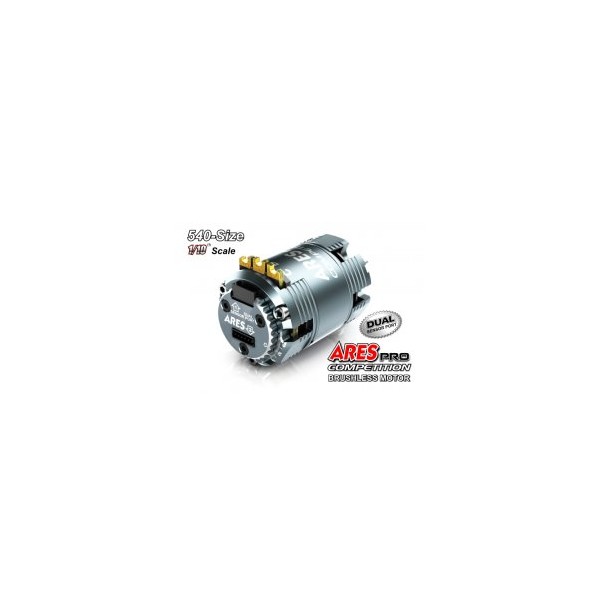

SKyRC Ares Pro 3.5T Brushless Motor
SKyRC Ares Pro 3.5T Brushless Motor
ARES PRO series brushless motor incorporates radial fan in its front end bell, creating powerful airflow to dissipate heat. The high efficient cooling system enables cooling operating temperature during and after running compared to motor of others.
Like all SKYRC brushless motors, the ARES Brushless motor is hand-wound for maximum copper fill, and each motor is individually tested for consistency to ensure the best product is sent to customers.
Feature:
- For: 1/10 RC Car
- Material: Aluminum
- Color: GunMetal
- Dual Sensor Port
- Incorporate Radial Fan in Front End Ball
- Adjustable Timing
- Compatible with any Sensored/Sensorless ESC
- CNC Machined Billet T6 Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Conductivity
- High Power Solder Tabs
- Removable/Replaceable Rotor
- Powerful Sintered Neodymium Magnet
- Precision Engineered for Maximum Energy Conversion
- Sensor-based for Excellent Torque and Low-Speed Driveability
Specification:
- Turns: 3.5T
- KV (RPM/VOLT): 9100KV
- Watts: 600
- Rotor: 2Poles
- LiPo: 1-2S
- Max Current: 130A
- Unload Current: 9.7A
- Internal Resistance: 0.0026
- Shaft Diameter: 3.175mm
- Net Weight: 178g
- Cooling Fan Inside: Yes
- Sintered Rotor Magnet: Yes
- Stepless Timing Adjustment: Yes
- Thermal Protection: Yes
- Hand Wound: Yes
- Racing Type: Modified
Include:
- SKYRC ARES PRO 3.5T 9100KV Brushless Sensored Modified 540 Competition Motor (1 pc)
- Sensor Cable (1 pc)
