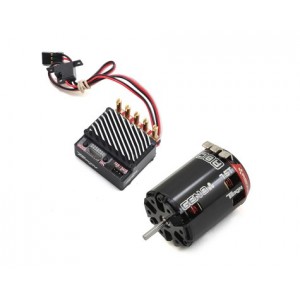

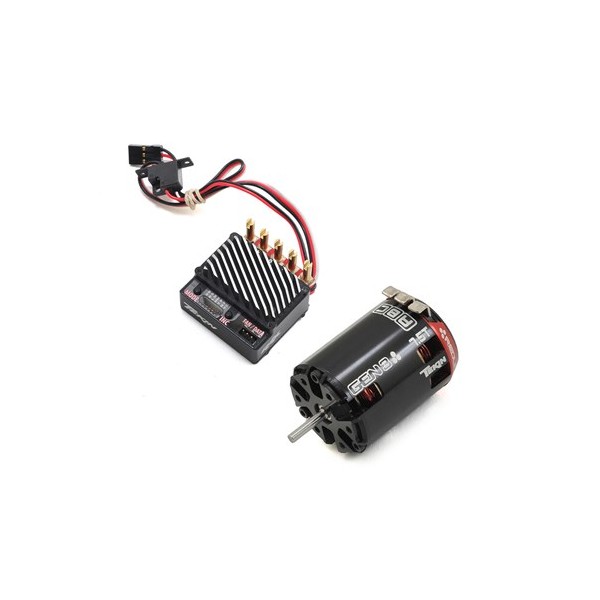

Tekin RSX Sensored Brushless ESC/Gen3 Motor Combo (7.5T)

Tekin RSX Sensored Brushless ESC/Gen3 Motor Combo. This combo includes the awesome RSX ESC and the Redline Gen3 7.5 Turn Modified Motor. Tekin Redline Gen3 Modified Sensored Brushless Motors have been engineered to be smaller, lighter and faster than the previous model. Much more than a re-hash and new look, the GEN3 Redline Sensored Motor is ready for any situation and able to create the speed you need to win. On Road or Off, the GEN3 delivers smooth power across the entire RPM range you’ve come to expect from a Tekin motor.

The GEN3 modified group of motors are custom tuned with rotor sizes to give you the performance needed for your application. The 8.5T comes standard with 12.5mm performance rotors and the 7.5T to 2.5T group are equipped with a 13mm rotor for that extra torque needed in modified racing.

Features:

• Motor:
• CNC Machined T 6061 Billet Aluminum Heat Sink Can
• Neodymium Sintered Magnet
• Precision Engineered for Maximum Energy Conversion
• High Purity Copper Windings Maximize Conductivity
• Low Resistance, High Power Solder Tabs
• Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
• Anodized End-bell plates maximize corrosion and wear resistance
• High RPM precision bearings
• Rebuild-able Design
• Solder-less Sensor PCB replacement
• Adjustable Timing
• Standard and RPM versions
• ESC:
• Billet Aluminum Heatsink Housing

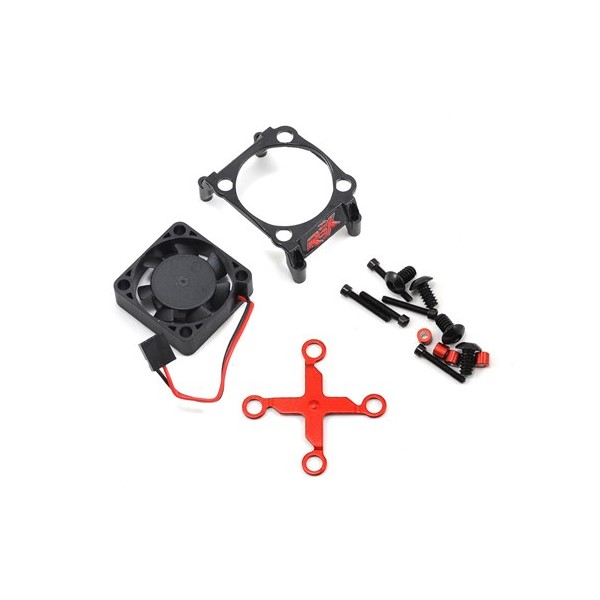

• Optional Fan Shroud System and High Speed Fan for Maximum Cooling
• Ultra-smooth and Precise Throttle and Braking Control
• Compatible with Sensored/Sensorless Brushless and Brushed Motors
• Easily Access Programming, Anywhere, Anytime
• Datalogging Capability
• High Voltage Programmable BEC
• EZ Access HotWire Programming Port
• HotWire PC Interface for Advanced Programming and Updating
• D2: Dual Drive Mode Technology
• On-Board Temperature Indicator
• HDAC: High Density Copper PCB's
• Sensor Plug for Precise Commutation with all Motors
• Gold-plated Solder Posts for Easy Wire Replacement
• Self Test Diagnostics and Factory Reset
• Pit Tune Mode
• DGF2: Digital Glitch Filtering V2
• QuickTune Programming
• One-Touch Radio Calibration High Voltage BEC (6.0v/7.4v)*

Specifications:

• Motor:
• Input Voltage: 2S
• Weight: 158g / 5.6oz
• Shaft Dimensions: 3.2mm (1/8") x 15.3mm
• Motor Diameter: 35.85mm / 1.40"
• Motor Length: 48.5mm / 1.909"
• Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
• Rotor Size: 13mm
• Rebuildable: Yes
• ESC:
• Controls: Forward/Brake/Reverse
• Input Voltage: 4-9 Cells, 2S-3S Lipo
• BEC: 6.0v / 7.4v 5.5amps
• Motor Limit Brushless Mode 2S: 2.5 Turn 2-pole, 4lb chassis
• Motor Limit Brushless Mode 3S: 8.5 Turn 2-pole, 4lb chassis
• Motor Limit Brushed 2S: 6 Turn, 36mm Can
• Motor Limit Brushed 3S: 12 Turn, 36mm Can
• Max Current: 180 Amps per phase
• Timing Profiles: 7 choices (on board)
• Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
• Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
• Dimensions: 1.21x1.43x.82in (25.4x33x12.9mm)
• Weight: 1.5oz / 42g
